MikroTik · Switches

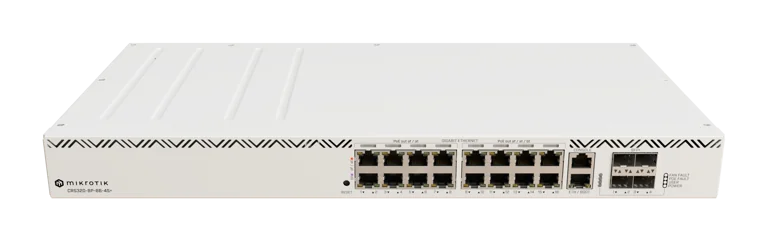

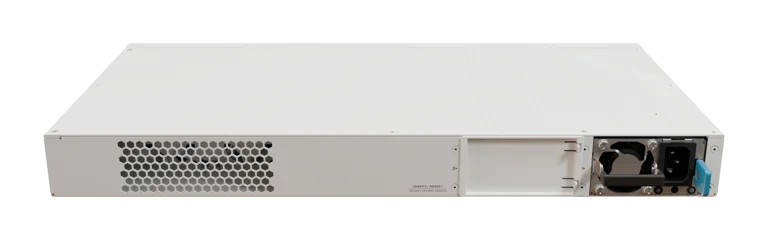

CRS320-8P-8B-4S+RM
SKU: CRS320-8P-8B-4S+RM
$489.00Call for Availability
Manufacturer suggested price: $489.00
The first MikroTik high-power PoE++ switch – for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables – create a cleaner space with PoE++!
- SwitchOS
Need help with this product?
Call us at 888-NET-FIX-8
Specifications
Specifications
- Product code
- CRS320-8P-8B-4S+RM
- Architecture
- ARM 32bit
- CPU
- 98DX226S
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- Switch chip model
- 98DX226S
- RouterOS license
- 5
- Operating System
- RouterOS v7 / SwitchOS
- Size of RAM
- 256 MB
- Storage size
- 32 MB
- Storage type
- FLASH
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -10°C to 50°C
Powering
- Number of AC inputs
- 1
- AC input range
- 100-240
- Number of PSU slots
- 2
- Frequency (Hz)
- 50-60
- Max power consumption
- 600W (1150W with additional PSU)
- Max power consumption without attachments
- 36 W
- Cooling type
- 3 fans
PoE-out
- PoE-out ports
- Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
- PoE out
- 802.3af/at/bt
- High voltage PoE-Out current limit
- 560 (af/at) / 1667 (bt) mA
- Max total out (A)
- 17.82 A
- Total output current
- 17.82
- Total output power
- 963
Ethernet
- 10/100/1000 Ethernet ports
- 17
- Number of 1G Ethernet ports with PoE-out
- 16
Fiber
- SFP+ ports
- 4
Peripherals
- Serial console port
- RJ45
Other
- CPU temperature monitor
- Yes
- PCB temperature monitor
- Yes
- Voltage Monitor
- Yes
Certification & Approvals
- Certification
- CE, EAC, ROHS
- IP
- 20
