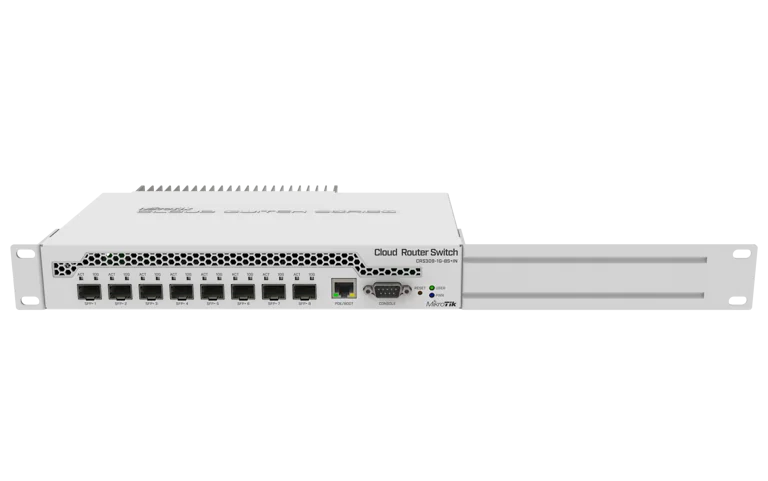

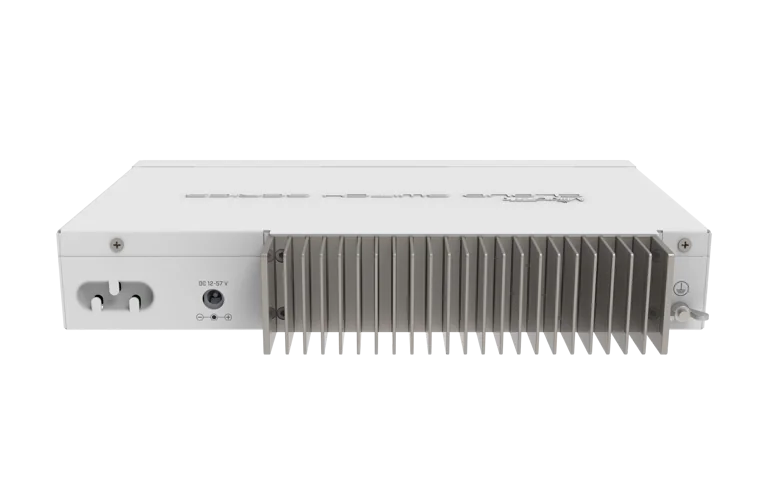

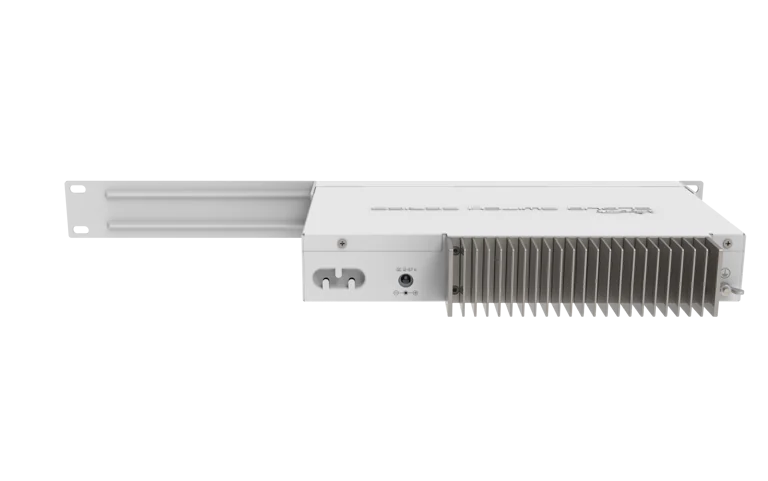

CRS309-1G-8S+IN
SKU: CRS309-1G-8S+IN
$269.00Call for Availability
Manufacturer suggested price: $269.00
Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports
- SwitchOS
Need help with this product?
Call us at 888-NET-FIX-8
Specifications
Specifications
- Product code
- CRS309-1G-8S+IN
- Architecture
- ARM 32bit
- CPU
- 98DX8208
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- CPU Threads count
- 2
- Switch chip model
- 98DX8208
- Dimensions
- 272 x 191 x 44 mm
- RouterOS license
- 5
- Operating System
- RouterOS / SwitchOS
- Size of RAM
- 512 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
Powering
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 12-57 V
- Max power consumption
- 23 W
- Max power consumption without attachments
- 17 W
- PoE in
- 802.3af/at
- Cooling type
- Passive
- PoE in input Voltage
- 18-57 V
Ethernet
- 10/100/1000 Ethernet ports
- 1
Fiber
- SFP+ ports
- 8
Peripherals
- Serial console port
- RS232
Other
- CPU temperature monitor
- Yes
- Beeper
- Yes
Certification & Approvals
- Certification
- CE, EAC, ROHS
- IP
- IP20
