MikroTik · RouterBOARD

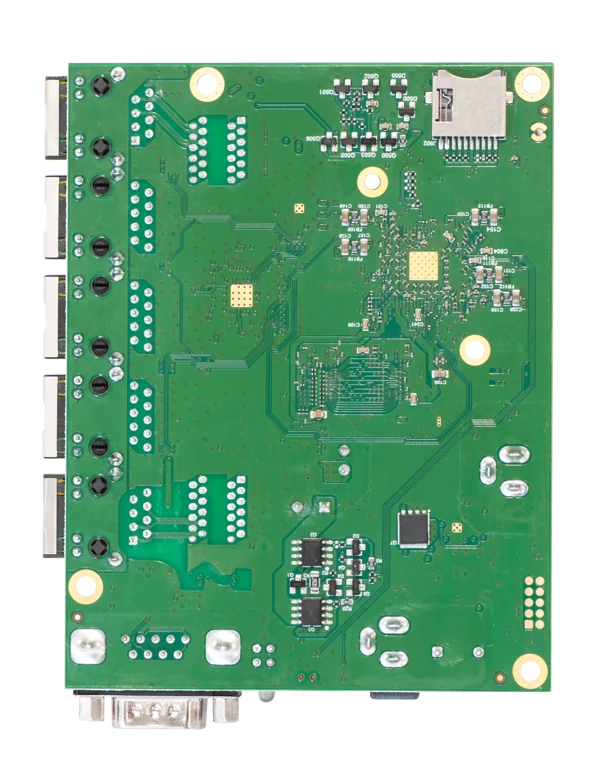

RB450Gx4
SKU: RB450Gx4
$99.00Call for Availability
Manufacturer suggested price: $99.00
Four core 716MHz CPU, 1GB RAM, 5xGigabit Ethernet, PoE out on port #5, RouterOS L5
- RouterBOOT
Need help with this product?
Call us at 888-NET-FIX-8
Specifications
Specifications
- Product code
- RB450Gx4
- Architecture
- ARM 32bit
- CPU
- IPQ-4019
- CPU core count
- 4
- CPU nominal frequency
- 448-896 (auto) MHz
- CPU Threads count
- 4
- Switch chip model
- IPQ-4019
- Dimensions
- 90 x 116 mm
- RouterOS license
- 5
- Operating System
- RouterOS
- Size of RAM
- 1 GB
- Storage size
- 512 MB
- Storage type
- NAND
- MTBF
- Approximately 100'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
Powering
- Number of DC inputs
- 3 (DC jack, PoE-IN)
- DC jack input Voltage
- 10-57 V
- Max power consumption
- 16 W
- Max power consumption without attachments
- 4 W
- PoE in
- 802.3af/at
- Cooling type
- Passive
- PoE in input Voltage
- 12-57 V
PoE-out
- PoE-out ports
- Ether5
- PoE out
- Passive PoE
- Low voltage PoE-Out current limit
- 500 mA
- High voltage PoE-Out current limit
- 500 mA
- Max total out (A)
- 500 mA
Ethernet
- 10/100/1000 Ethernet ports
- 5
Peripherals
- Memory card type
- microSD
- Serial console port
- RS232
Other
- PCB temperature monitor
- Yes
- Voltage Monitor
- Yes
- Beeper
- Yes
Certification & Approvals
- Certification
- CE, EAC, ROHS
- IP
- IP00
