MikroTik · Ethernet Routers
ROSE Data server (RDS)
SKU: RDS2216-2XG-4S+4XS-2XQ
$1950.00Call for Availability
Manufacturer suggested price: $1950.00

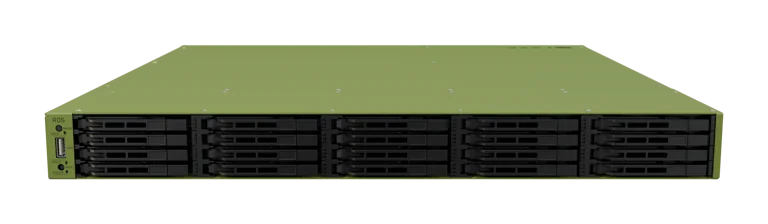

RDS is a high-performance, all-in-one storage, 100G networking, and container platform designed for enterprise environments. Featuring 20 U.2 NVMe storage slots and a special RouterOS Edition for Storage & Compute (ROSE).
- container
- rose-storage
Need help with this product?
Call us at 888-NET-FIX-8
Specifications
Specifications
- Product code
- RDS2216-2XG-4S+4XS-2XQ
- Architecture
- ARM 64bit
- CPU
- AL73400
- CPU core count
- 16
- CPU nominal frequency
- 2000 MHz
- CPU Threads count
- 16
- Switch chip model
- 98DX4310
- Dimensions
- 476 x 443 x 44 mm
- RouterOS license
- 6
- Operating System
- RouterOS v7 (Special ROSE edition)
- Size of RAM
- 32 GB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -20°C to 50°C
Powering
- Number of AC inputs
- 2
- AC input range
- 100-240
- Frequency (Hz)
- 50-60
- Max power consumption
- 286 W
- Max power consumption without attachments
- 105 W
- Cooling type
- 10 fans
Ethernet
- 10/100/1000 Ethernet ports
- 1
- Number of 1G/2.5G/5G/10G Ethernet ports
- 2
Fiber
- SFP+ ports
- 4
- Number of 25G SFP28 ports
- 4
- Number of 100G QSFP28 ports
- 2
Peripherals
- Serial console port
- RJ45
- Number of USB ports
- 2
- USB Power Reset
- Yes
- USB slot type
- USB 3.0 type A
- Max USB current (A)
- 1
- Number of M.2 slots
- 2
Other
- CPU temperature monitor
- Yes
- PCB temperature monitor
- Yes
- Voltage Monitor
- Yes
- Mode button
- Yes
Certification & Approvals
- Certification
- CE, EAC, ROHS
- IP
- 20
