MikroTik · Ethernet Routers

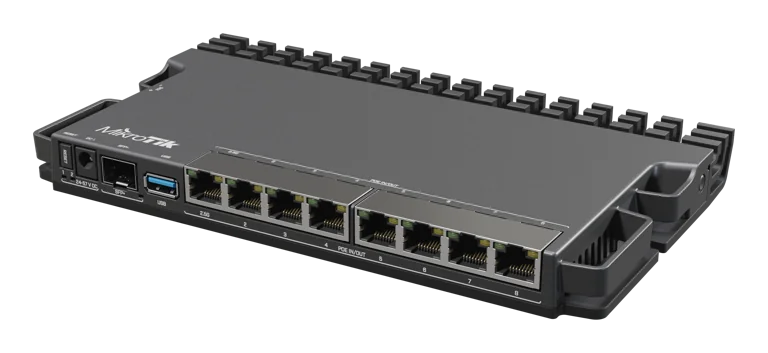

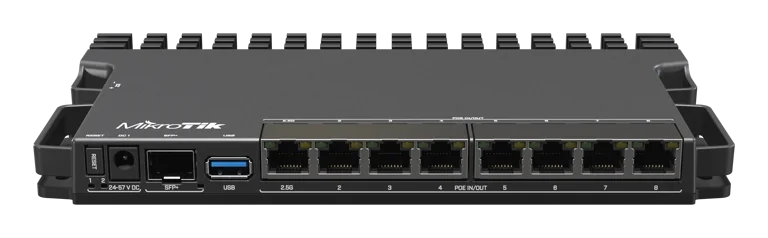

RB5009UPr+S+IN
SKU: RB5009UPr+S+IN
$299.00Call for Availability
Manufacturer suggested price: $299.00
A new version of our popular heavy-duty RB5009 router with PoE-in and PoE-out on all ports. Perfect for small and medium ISPs. 2.5 Gigabit Ethernet & 10 Gigabit SFP+, numerous powering options.
- container
Need help with this product?
Call us at 888-NET-FIX-8
Specifications
Specifications
- Product code
- RB5009UPr+S+IN
- Architecture
- ARM 64bit
- CPU
- 88F7040
- CPU core count
- 4
- CPU nominal frequency
- 350-1400 (auto) MHz
- CPU Threads count
- 4
- Switch chip model
- 88E6393
- RouterOS license
- 5
- Operating System
- RouterOS v7
- Size of RAM
- 1 GB
- Storage size
- 1 GB
- Storage type
- NAND
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 60°C
Powering
- Number of DC inputs
- 3 (DC jack, PoE-IN, 2-pin terminal)
- DC jack input Voltage
- 24-57 V
- 2-pin terminal input Voltage
- 24-57 V
- Max power consumption
- 150 W
- Max power consumption without attachments
- 16 W
- PoE in
- 802.3af/at (ether1), Mode B (ether2-ether8)
- Cooling type
- Passive
- PoE in input Voltage
- 24-57 V
PoE-out
- PoE-out ports
- Ether1-Ether8
- PoE out
- 802.3af/at
- Low voltage PoE-Out current limit
- 900 mA
- High voltage PoE-Out current limit
- 440 mA
- Max total out (A)
- 2.59 A
- Total output current
- 2.28
- Total output power
- 130
Ethernet
- 10/100/1000 Ethernet ports
- 7
- Number of 1G Ethernet ports with Reverse PoE (PoE-in)
- 7
- Number of 2.5G Ethernet ports
- 1
- Number of 2.5G Ethernet ports with Reverse PoE (PoE-in)
- 1
Fiber
- SFP+ ports
- 1
Peripherals
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB 3.0 type A
- Max USB current (A)
- 1.5
Other
- CPU temperature monitor
- Yes
- Current Monitor
- Yes
- PCB temperature monitor
- Yes
- Voltage Monitor
- Yes
Certification & Approvals
- Certification
- CE, EAC, ROHS
- IP
- 20
