MikroTik · Ethernet Routers

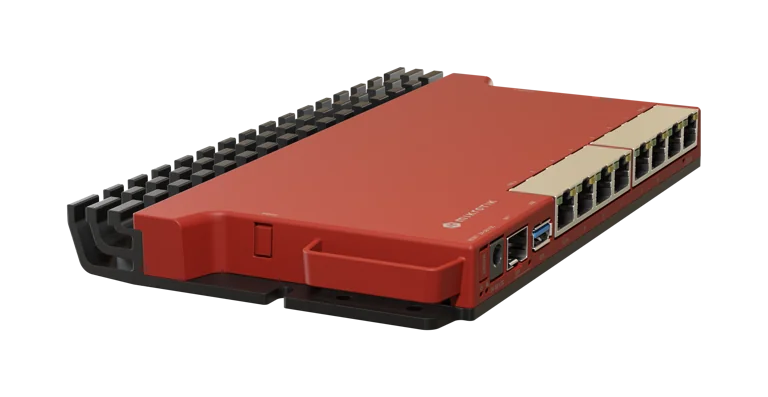

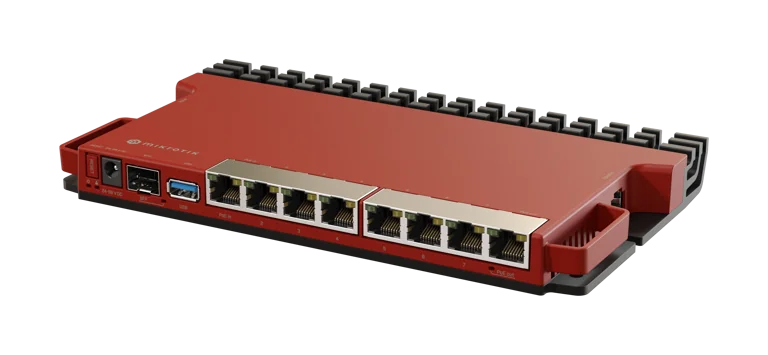

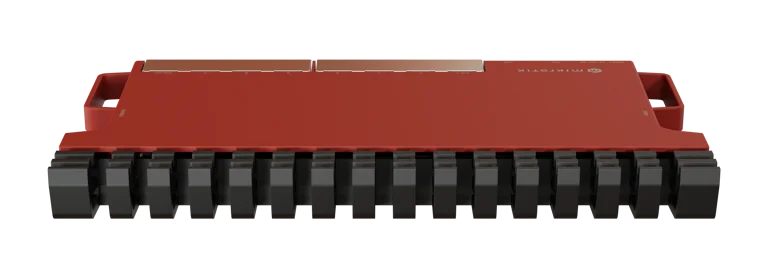

L009UiGS-RM
SKU: L009UiGS-RM
$119.00Call for Availability
Manufacturer suggested price: $119.00
L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 1U rackmount accessories.
Need help with this product?
Call us at 888-NET-FIX-8
Specifications
Specifications
- Product code
- L009UiGS-RM
- Architecture
- ARM 32bit
- CPU
- IPQ-5018
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- CPU Threads count
- 2
- Switch chip model
- 88E6190
- RouterOS license
- 5
- Operating System
- RouterOS v7
- Size of RAM
- 512 MB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
Powering
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 24-56 V
- Max power consumption
- 40 W
- Max power consumption without attachments
- 8 W
- PoE in
- 802.3af/at
- Cooling type
- Passive
- PoE in input Voltage
- 24-56 V
PoE-out
- PoE-out ports
- Ether8
- PoE out
- Passive PoE
- Low voltage PoE-Out current limit
- 1 A
- High voltage PoE-Out current limit
- 450 mA
- Max total out (A)
- 1 A
Ethernet
- 10/100/1000 Ethernet ports
- 8
- Number of 1G Ethernet ports with PoE-out
- 1
Fiber
- SFP ports
- 1 (2.5G supported)
Peripherals
- Serial console port
- RJ45
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB 3.0 type A
- Max USB current (A)
- 1.5
Other
- Mode button
- Yes
Certification & Approvals
- Certification
- CE, EAC, ROHS
- IP
- 20
